- Nuovo

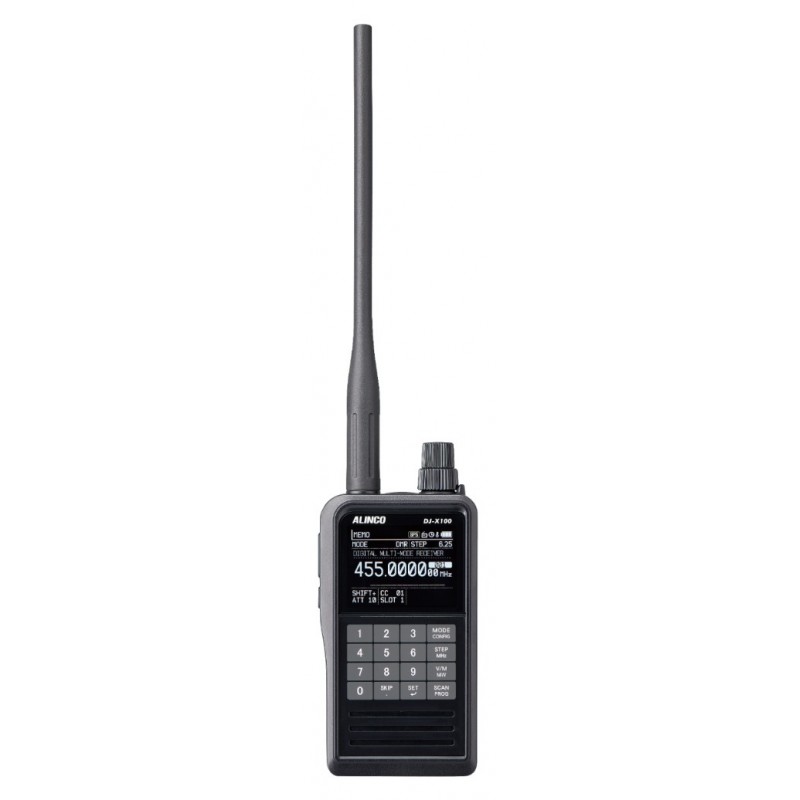

Alinco DJ-X100E Ricevitore Scanner Analogico - Digitale
750,00 €
Tasse incluse
ALINCO DJ-X100E Ricevitore Scanner Portatile Analogico - Digitale Multi-Mode
ALINCO DJ-X100E
Ricevitore Scanner Portatile Multi-Mode
Analogico - Digitale
| Receiver range: | 30.0 ~ 470.0MHz / 76.0 ~ 108.0MHz (WFM Only) |
|---|---|
| Mode: | Analog: FM/NFM/AM/NAM/WFM/DCR/DMR/NXDN/dPMR/D-STAR voice/C4FM (DN) / AIS & ACARS data |
| Antenna Impedance: | 50 ohms (SMA) |
| Supply voltage: | Li-ion battery 3.6Vdc (EBP-114A, 3120mAh) Dry cell battery (optional EDH-43: 3AA 4.5Vdc) External power supply (USB Type-C) 5Vdc |
| Current consumption(approx.): | Standby: 150mA (BS ON, backlight, FM mode, GPS OFF) / 300mA (Backlight/WFM mode OFF, GPS ON) Receiving: 500mA (FM rated output, backlight/WFM mode OFF, GPS ON) |
| Temperature range: | Reception: -20degC to +60degC (-4 to +140 degF) Charging: +10 to +40degC (50 to 104degF) |
| Frequency stability: | -7 to +3ppm(-10 to +60 dig C)(+14 to +140 dig F) |
| Dimension without projection: | Width 58(2.283) x height 110 (4.331) x depth 32.5mm/in. (exclude antenna) |
| Weight: | Approx. 260g/9.171ounce (including antenna and battery pack) Belt clip: Approx. 14g/0.493 ounce |
| Receiver: | [FM/AM/Digital/Data] Triple Super Heterodyne Conversion / 1st IF : 243.95MHz. / 2nd IF: 50.85MHz / 3rd IF 450kHz [WFM] Direct Conversion |
| Sensitivity: | FM / NFM: -10dBuV (12dB SINAD) AM / NAM: 2dBuV (10dB S/N) T98: -10dBuV (BER 1%) / DMR: -7dBuV (BER 1%) D-STAR: -10dBuV (BER 1%) C4FM(DN): -7dBuV (BER 1%) AIS: -5dBuV (BER 1%, 162MHz only) WFM: -2dBuV (12dB SINAD) |
| Filter width: | FM = 15kHz / NFM = 9kHz / AM = 9kHz / NAM = 6kHz |
| Audio Output power: | Internal Speaker 400mW(10% distortion / 8ohm) External Terminal 40mW(10% distortion / 32ohm) |
Completo di: Pacco Batteria Li-Ion EBP-114A / Adattatore USB / Cavo USB / Antenna / Clip
